• Bright front bumper
• Bright rear bumper
• Front air dam
• Body-color upper front fascia
• Bright/bright grille
• Fog lamps
• Pwr heated fold-away mirrors
• Tinted windows
• Variable speed intermittent windshield wipers
• Cargo lamp
• Removable tailgate

• Cloth 40/20/40 split bench seat-inc: stain & odor resistant, anti-static seat fabric
• Folding rear seat
• Mini floor console
• Floor carpeting
• Front/rear floor mats
• Tilt steering column
• Sentry Key theft deterrent system
• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Tire pressure monitor
• Color keyed instrument panel bezel
• Pwr windows w/driver 1-touch down
• Pwr sliding rear window
• Pwr locks
• Pwr accessory delay
• Remote keyless entry
• Speed control
• AM/FM stereo w/CD player-inc: (4) speakers
• Sirius satellite radio w/1-year service *N/A in HI or PR* *Limited service in AK* *Call Sirius to activate at 888-539-7474*
• Auxiliary audio input jack
• Fixed long mast antenna
• Air conditioning
• Day/night rearview mirror
• Overhead console w/trip computer
• Cigar lighter
• 12V pwr outlet
• Passenger assist handle
• Passenger side visor vanity mirror
• Rear underseat storage compartment

• Rear wheel anti-lock brakes
• Driver/front passenger multistage airbags
• Front shoulder belt height adjusters
• Dual note horn

MONOTONE PAINT

• (STD)

HD ENGINE COOLING

• HD trans oil cooler

TRAILER TOW GROUP

• 750-amp maintenance free battery
• class IV hitch receiver
• 7-pin wiring harness (w/EZB Engine HD engine cooling)

20" X 9" ALUMINUM CHROME CLAD WHEELS

• 20" steel spare

CLOTH 40/20/40 SPLIT BENCH SEAT

• stain & odor resistant
• anti-static seat fabric (STD)

26G SLT CUSTOMER PREFERRED ORDER SELECTION PKG

• 5.7L V8 engine
• 5-speed auto trans

5.7L V8 HEMI MULTI-DISPLACEMENT ENGINE

• electronically controlled throttle
• next generation engine controller

P275/60R20 ALL-SEASON BSW TIRES

• (STD)

5-SPEED AUTOMATIC TRANSMISSION

• aux transmission oil cooler
• tip start

• COOL VANILLA PAINT
• MONOTONE PAINT (STD)
• HD ENGINE COOLING -inc: HD trans oil cooler
• ANTI-SPIN REAR AXLE
• HOOD PROTECTION SHIELD
• 3.92 AXLE RATIO
• TRAILER TOW GROUP -inc: 750-amp maintenance free battery class IV hitch receiver 7-pin wiring harness (w/EZB Engine-inc: HD engine cooling)
• 20 X 9 ALUMINUM CHROME CLAD WHEELS -inc: 20 steel spare
• CLOTH 40/20/40 SPLIT BENCH SEAT -inc: stain & odor resistant anti-static seat fabric (STD)
• 26G SLT CUSTOMER PREFERRED ORDER SELECTION PKG -inc: 5.7L V8 engine 5-speed auto trans
• EXTRA COST METALLIC PAINT
• 5.7L V8 HEMI MULTI-DISPLACEMENT ENGINE -inc: electronically controlled throttle next generation engine controller
• EXTRA COST PEARL PAINT
• CHROME BODYSIDE MOLDINGS
• UNDER RAIL BOX BEDLINER
• 750-AMP MAINTENANCE-FREE BATTERY
• P275/60R20 ALL-SEASON BSW TIRES (STD)
• 5-SPEED AUTOMATIC TRANSMISSION -inc: aux transmission oil cooler tip start
• FOLDING PWR TRAILER TOW MIRRORS
• MANUFACTURER STATEMENT OF ORIGIN
• Four Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• ABS
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Immobilizer
• Tire Pressure Monitor
• Power Windows
• Power Windows
• Sliding Rear Window
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• AM/FM Stereo
• CD Player
• Satellite Radio
• Requires Subscription
• Auxiliary Audio Input
• A/C
• Trip Computer
• Power Outlet
• Passenger Vanity Mirror
• ABS
• Driver Air Bag
• Passenger Air Bag

• Mileage
• EPA Fuel Economy Est - City (MPG): 12
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 3104
• Curb Weight - Front (lbs): 3068
• Curb Weight - Rear (lbs): 2246
• Curb Weight - Rear (lbs): 2221
• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Independent SLA
• Suspension Type - Rear: Leaf spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.92
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.92
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 0.86
• Tires
• Front Tire Order Code: TTJ
• Rear Tire Order Code: TTJ
• Spare Tire Order Code: TBB
• Front Tire Size: P275/60R20
• Rear Tire Size: P275/60R20
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 2364
• Rear Tire Capacity (lbs): 2364
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 636
• Revolutions/Mile @ 45 mph - Rear: 636
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 20 x 9.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 227.7
• Width, Max w/o mirrors (in): 79.6
• Height, Overall (in): 77.2
• Overhang, Front (in): 39.3
• Overhang, Rear w/o bumper (in): 47.9
• Front Bumper to Back of Cab (in): 142.9
• Cab to Axle (in): 36.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 10.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 63.5
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.0
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.7
• Second Shoulder Room (in): 66.5
• Second Hip Room (in): 65.3
• Summary

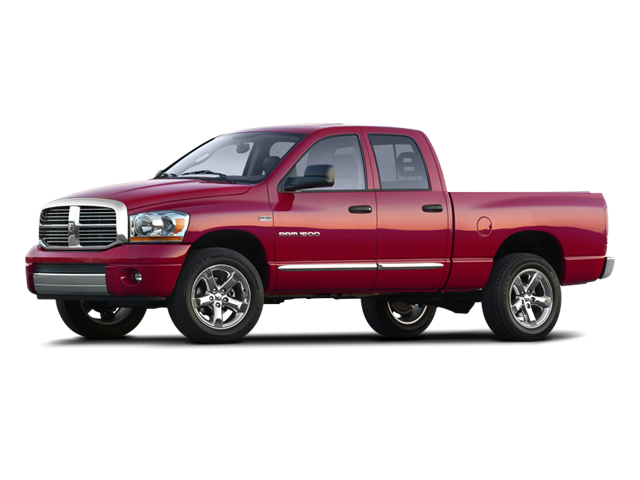

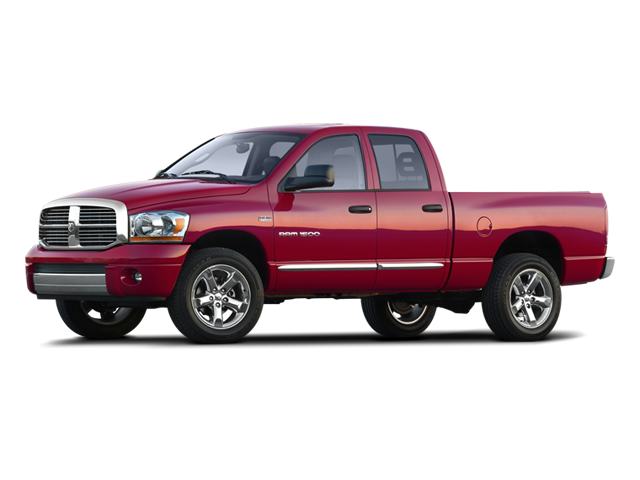

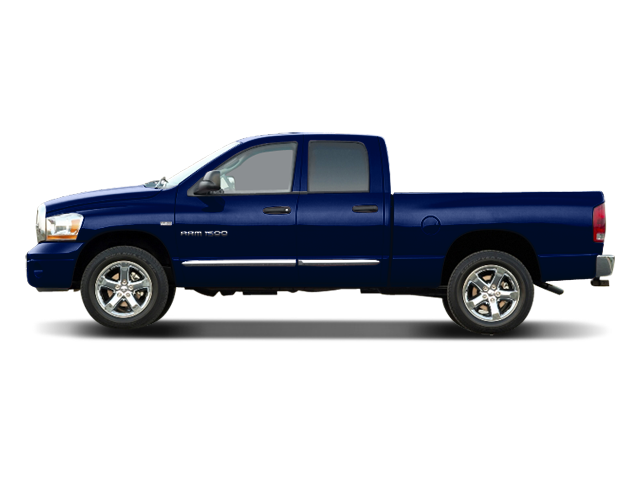

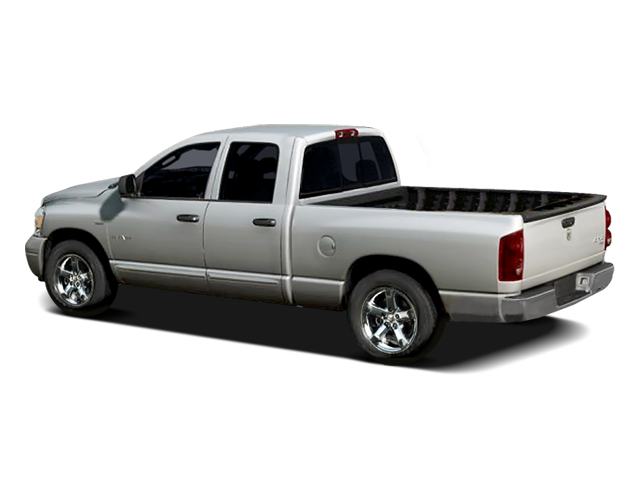

• Vehicle Name: Dodge Ram 1500
• Body Style: Quad Cab 6.3' Bed
• Body Code: 140.5" WB
